Two Heads, One Goal
One machine that works like two. The new CNC router with two gantries takes your production to the next level.
About ettin
The two-headed giant from ancient tales, Ettin, now rules production halls. Will you harness its double power?

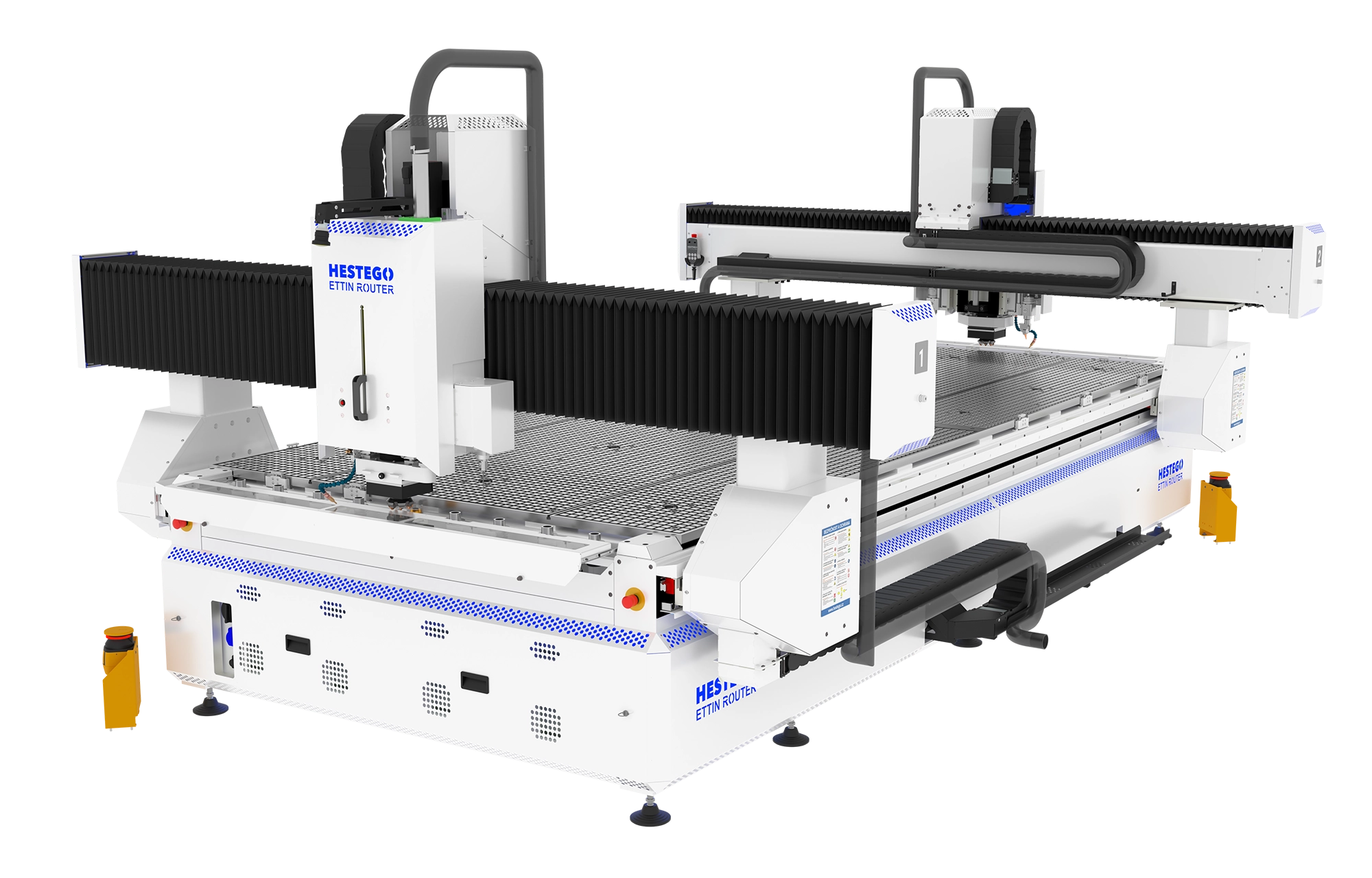

higher performance thanks to two gantries
The revolutionary design allows work on two independent gantries simultaneously. No downtime, with a single operator.
Create a small production line from one machine.
While one side works, the other prepares. Or the portals can run at full speed simultaneously. As you need.
High Precision for Large Formats
Digital control and high rigidity guarantee maximum machining precision. Your products will be precise and of high quality.
From Fabrics to Wood, Dural, and Steel
The flexible design handles a wide range of materials and operations. You’ll find it useful across various industries – from prototype manufacturing to mass production.
Intelligent Safety System
The innovative safety system allows the operator to manage one side of the machine while the other side continues working. Ensuring both safety and continuous operation.
Increased Productivity
The robust design maintains maximum stability even at high speeds. This allows you to fully utilize the machine’s capacity and boosts production productivity.
No Need for Structural Modifications
Simply ensure electrical and air connections.

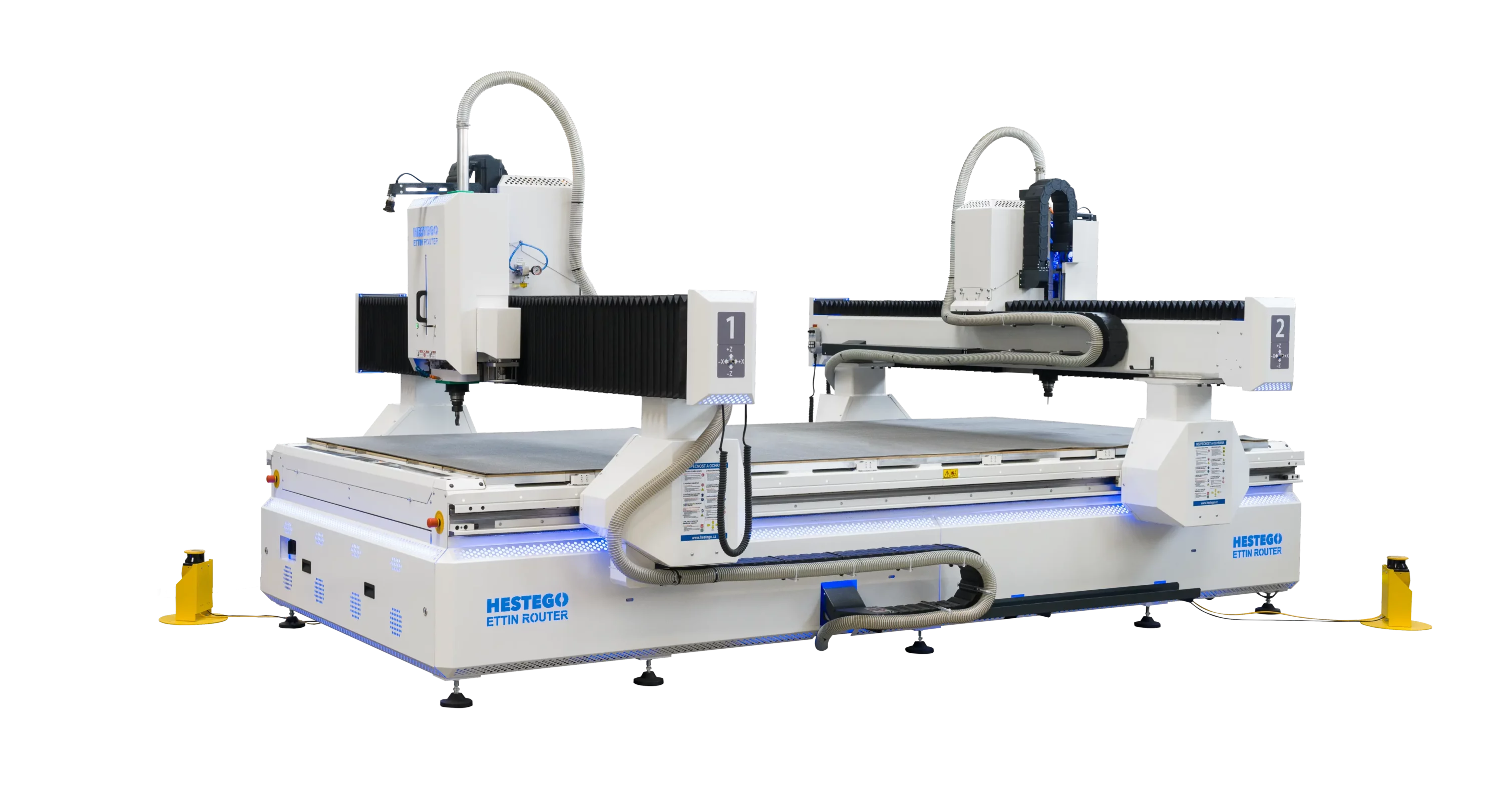

Explore Our CNC Router in Detail
-
Control system TwinCAT – Beckhoff
Maximal machine dimensions (excluding control panel) length: 5 500 mm
width: 3 550 mm
height: 2 200 mm
weight: 5 000 kgZ axis clearance 355 mm
Dimensions and maximum weight of the workpiece length: 4 350 mm
width: 2 010 mm
height: 200 mm
weight: 1 500 kgDrive system Servomotors
Linear bearing Hiwin
Axis movement speed up to 30 m/min
Positioning accuracy 0,04
Workpiece clamping system Vacuum + T‑slots
Electrospindle 5.5 kW
Tool holder HSK 63F – ER32
Maximum speed of electrospindle 24 000 RPM
Auxiliary working units Pneumatic oscillating knife, tangential drag knife, creasing tool
Electrospindle cooling Air (fan)
Construction Massive welded steel frame, annealed, blasted and precisely machined
Type of table Vacuum + T‑slots
Tool change Manual & automatic tool changer with 2×8 tool slots
In-house development Hestego + RCMT CTU
Safety features Safety scanners, optical gates with protective mesh
Touchscreen control panel Beckhoff 24″ touch panel
HMI Interface Hestego & RCMT CTU
This machine incorporates proprietary innovative solutions
-
- Milling
- Oscillating
- Cutting
- Threading
- Creasing
-
- Steel
- Duralumin
- Aluminium
- Copper
- Brass
- Plastics
- MDF
- Wood
- Rubber
- Foam materials
- Cardboard
- Stickers
Interested in the CNC Router ETTIN?
Smart oversight and assistance when needed
Quick service to minimize downtime.
Training Until You Master It.
Instant support when needed.
Warranty and care? Guaranteed.
Academy and Industry in Perfect Harmony
We connect science and practice. Our machines are developed in collaboration with RCMT ČVUT to find the best solutions. With ISO certifications and strict European standards, you can be sure everything will run reliably and at full speed.
Impressed by ETTIN? Let’s discuss it.
Would you like to learn more about the CNC Router ETTIN? Contact us directly or send us your contact details. We’ll get back to you as soon as possible.
